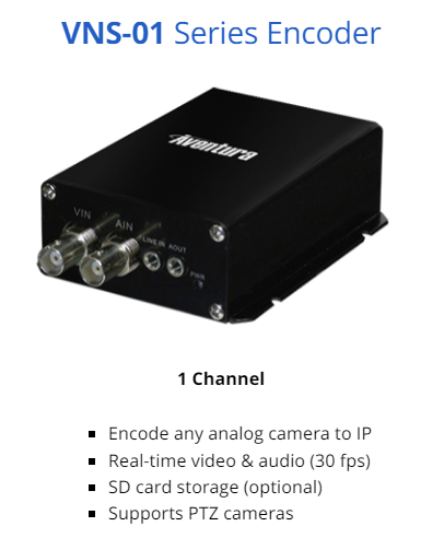

VNS-01 Series Encoder

Encode any analog camera to IP Real-time video & audio (30 fps) 1 channel of audio & video (720 x 480) SD card storage (optional) Supports PTZ cameras
Manufacturer: Aventura

Features

  • Encode any analog camera to IP
  • Real-time video & audio (30 fps)
  • 1 channel of audio & video (720 x 480)
  • SD card storage (optional)
  • Supports PTZ cameras

Specifications

External interface
Network interface1 RJ45 10M/100M Self-adaptable Ethernet Interface
Serial interface1 RS232 interface, 1 RS 485 interface for PTZ
Alarm in1 channel
Alarm out1 channel
USB interface
Hardware
StorageSD Card (Optional)
Audio/Video
Video/Audio Inputs1 Channel BNC (Linear Electrical Level, Resistance:600), Microphone jack
Audio OutputEarphone jack
Video CompressionH.264
Audio CompressionOgg Vorbis
Video Bitrate16 K ~ 2 M no limitation and self-defined (bps)
Audio Bitrate16 Kbps
Video Frame RateNTSC: 30 fps
Pal: 25 fps
Code StreamSingle video stream or composite stream
Latency50 ms
Resolution
Video Display ResolutionFULL D1 (720 x 480), CIF (352 x 240), QCIF (176 x 120) resolution
Environment
Operating Temperature-40 ~ 167° F (-40 ~ 70° C)
Operating Humidity≤ 95% non-condensing
Electrical
Power Consumption< 7 W
Power SupplyDC 12V
General
MaterialRuggedized
Weight0.55 lbs (250 g)
Warranty5 Years

Part Numbers


VNS-01H.264 IP camera encoder, 1 channel video and audio, full D1
VNS-01-SDH.264 IP camera encoder, 1 channel video and audio, full D1, SD card storage
