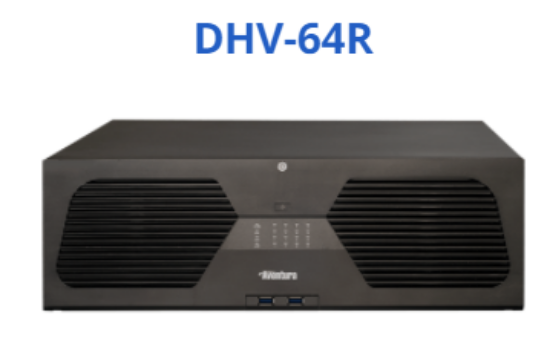

DHV-64R

64 IP cameras 320Mbps bandwidth 16 HDD bay with RAID 8 alarm inputs 4 alarm outputs 19” 3U Rackmount
الشركة: Aventura

Features

  • 64 IP cameras
  • Embedded Linux with HDD RAID storage
  • 4K HDMI Display output & 2nd 1080p output
  • Smart Events: Face Detection, Face Match
  • Support up to 8MP IP Cameras
  • 19″ Rackmount 3U

Specifications

Video
CPUARM Cortex-A17
Video CompressionH.265/H.264
Video System50Hz/60Hz
IP Video Input64 Cameras
Audio input1 Input, RCA (2.0 Vp-p, 1k )
Audio Output1 Output, RCA (2.0 Vp-p, 1k )
Display
VGA / HDMI2x HDMI 1x VGA (HDMI1 & VGA duplicate display)
Display ResolutionHDMI1 & VGA max 3840*2160 (4K), HDMI2 max 1080p
Recording MethodsManual, motion, exception, smart events
Recording Resolution8MP/6MP/5MP/4MP/3MP/1080P/1280 1024/960P/720P/ 960H/D1/CIF
IP-Recording Bandwidth320Mbps
Video StreamingDual Streaming: Main-stream, Sub-stream
Maximum Decode1 Channel @ 8MP, 5 Channels @ 5MP, 16 Channels 720p
PlaybackPlay, Pause, Fast Forward, Fast Rewind, Digital Zoom
Playback
Local Playbackmaximum 16 Channels
Network Remote PlaybackMulti Camera IE/Mac Safari or Mobile App
Playback SearchTime Slice / time / event / tag search
Playback ModePlay, Pause, Fast Forward, Fast Rewind, Digital Zoom
Backup Methode-SATA, USB, Network
Smart Function
Face / People DetectionTrigger Alarms inside a pre-defined area
Face MatchSearch Alarms for recognised faces
Crowd DensityAlarm events on exceeding a threashold setting.
People CountingTracking exit/entering areas using head shapes
Object DetectionAbandoned or Missing ojbject.
Network
ProtocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x
SecurityARP Guard. HTTPS(SSL) login, Digest login authentication, IP Black and White list from IP or Segment range.
Connection TypeStatic IP, DHCP, PPPoE
Onvif SupportOnvif Version 2.6.1
P2P SuportYes
DDNSYes
Mobile App SupportiOS & Android APP
Users10 Concurrent connections
Hardware
HDD interface8 SATA HDD, up to 14TB
Raid Level SupportRAID0, RAID1, RAID5, RAID6, RAID10
Communication Interface2x RJ-45 1000Mbps Ethernet interfaces
eSATA1 e-SATA port
USBUSB 3.0 x1, USB 2.0 x2
Sensor & Alarm I/O8 inputs / 4 output
PTZ Controlbuilt-in RS485
Keyboard PortKeyboard via RS485
Physical
Power SupplyATX
Dimensions (WxDxH)437 x 483 x 143mm (17.2’ x 19’ x 5.62’)
Working Temperature-10 C~+55 C (14 F~+131 F) / 10%~90%RH
Weight14.36kg / 31.66lb


Part Numbers



DHV-64R

H.265/H.264 embedded standalone NVR, up to 64 IP channels, 16 HDD slots support RAID, 320Mbps (supports up to 8MP cameras) (storage additional)
HD-1000GBSATA1000GB (1TB) Enterprise NVR SATA Hard Drive Storage
HD-2000GBSATA2000GB (2TB) Enterprise NVR SATA Hard Drive Storage
HD-4000GBSATA4000GB (4TB) Enterprise NVR SATA Hard Drive Storage
HD-6000GBSATA4000GB (6TB) Enterprise NVR SATA Hard Drive Storage
HD-8000GBSATA8000GB (8TB) Enterprise NVR SATA Hard Drive Storage
HD-10000GBSATA10000GB (10TB) Enterprise NVR SATA Hard Drive Storage
HD-12000GBSATA12000GB (12TB) Enterprise NVR SATA Hard Drive Storage
HD-14000GBSATA14000GB (14TB) Enterprise NVR SATA Hard Drive Storage
