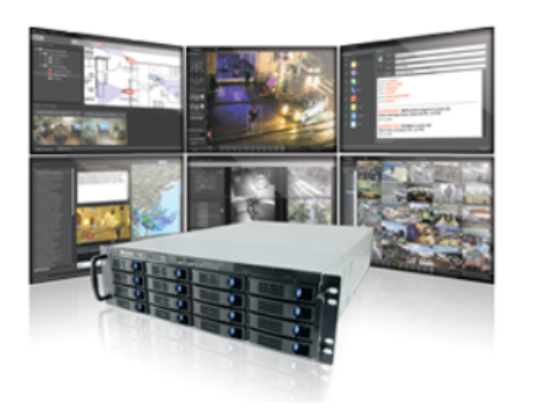

DH5-Series

Up to 64 Analog & 128 IP Video Channels H.264/H.265 Video Compression ONVIF & PSIA Compliant Third Party Camera Support 3U Rackmount Chassis Up to 192TB RAID Storage (16 HDD)
Be the first to review this product
Manufacturer: Aventura

Features

  • Up to 32 Analog & 32 IP Video Channels
  • H.264 Video Compression
  • ONVIF & PSIA Compliant
  • Third Party Camera Support
  • 4U Rackmount Chassis
  • Up to 36TB Storage (RAID Optional)

Specifications

Hardware
CPUIntel i7
RAM8GB
Video RAM1GB
Storage16 Hot-Swap Drive Bays, Supports up to 96 TB JBOD/RAIDLevels 0, 1, 5, 6, 10
OSWindows 7 Ultimate
Removable MediaDVD-RW
AUDIO/VIDEO
Processor1 VGA/ 2 HDMIOut
Video/Audio Inputs1 – 64 BNC(1.0Vp-p 75 Ω)
Video CompressionH.264
Audio CompressionOgg Vorbis 16 Kbps
COMMUNICATION
LANRedundant 10/100/1000
Record Rate30 fps @4CIF
Input Device106-KeyUSBKeyboard /Optical USBMouse
PTZ ControlRS-232/422 Interface
RESOLUTION
Video Display ResolutionAnalog: Up to 4CIF(NTSC: 704X480, PAL: 704×576)
Digital: Up to 2560 x1600
Recording ResolutionAnalog: Up to 4CIF(NTSC: 704X480, PAL: 704×576)
Digital: Up to 20 Megapixel
ENVIRONMENT
Operating Temperature25 ~ 110° F(-3.8 ~ 43.3° C)
ELECTRICAL
Power Supply500 W/ 90 – 264 V
GENERAL
Weight100 lbs (45.4 kg)
Dimensions5.25″ x19″ x26″(133 x482 x660 mm)
Chassis Type3URackmount
Encrypted WatermarkAES/ MD5
MonitoringFull Remote Control PSTN, ISDN, ADSL, LANand TCP/IP
Safety StandardsEN60950,UL1459
EMC StandardsEN55022 Class-B, EN50082-1
FCCFIPS140-2,USGCB
Warranty5 Years



Part Numbers


DH5-04H.264 hybrid DVR/NVR, 4ch Audio/Video, up to 128 IPVideo Channels, 12TBHot-Swappable Storage,Hardware RAID, Intelligent Video Analytics
DH5-08H.264 hybrid DVR/NVR, 8ch Audio/Video, up to 128 IPVideo Channels, 12TBHot-Swappable Storage,Hardware RAID, Intelligent Video Analytics
DH5-12H.264 hybrid DVR/NVR, 12ch Audio/Video, up to 128 IPVideo Channels, 12TBHot-Swappable Storage,Hardware RAID, Intelligent Video Analytics
DH5-16H.264 hybrid DVR/NVR, 16ch Audio/Video, up to 128 IPVideo Channels, 12TBHot-Swappable Storage,Hardware RAID, Intelligent Video Analytics
DH5-20H.264 hybrid DVR/NVR, 20ch Audio/Video, up to 128 IPVideo Channels, 12TBHot-Swappable Storage,Hardware RAID, Intelligent Video Analytics
DH5-24H.264 hybrid DVR/NVR, 24ch Audio/Video, up to 128 IPVideo Channels, 12TBHot-Swappable Storage,Hardware RAID, Intelligent Video Analytics
DH5-32H.264 hybrid DVR/NVR, 32ch Audio/Video, up to 128 IPVideo Channels, 12TBHot-Swappable Storage,Hardware RAID, Intelligent Video Analytics
DH5-64H.264 hybrid DVR/NVR, 64ch Audio/Video, up to 128 IPVideo Channels, 12TBHot-Swappable Storage,Hardware RAID, Intelligent Video Analytics
