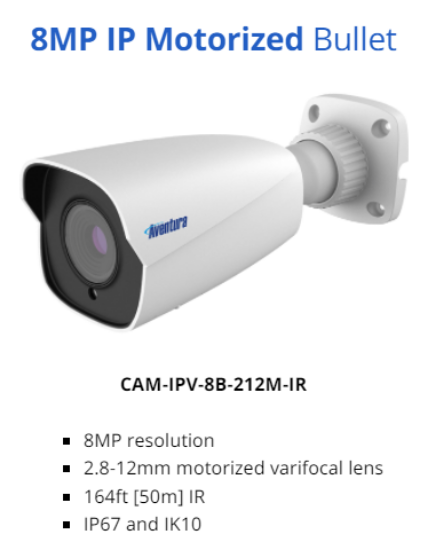

CAM-IPV-8B-212M-IR

8MP resolution Motorized Lens 2.8-12mm ICR auto switch, true day / night, ROI coding 3D DNR, digital WDR, HLC, BLC, defog 60m IR night view distance DC12V/PoE power supply IP67 ingress protection Support three streams Intelligent analytics
Manufacturer: Aventura

Features

  • 8MP resolution Motorized Lens 2.8-12mm
  • ICR auto switch, true day / night, ROI coding
  • 3D DNR, digital WDR, HLC, BLC, defog
  • 60m IR night view distance
  • DC12V/PoE power supply
  • IP67 ingress protection
  • Support three streams
  • Intelligent analytics

Part Numbers


CAM-IPV-8B-212M-IR8MP Bullet Camera with Motorized Lens 2.8-12mm
CAM-BKT-IPV-J1Junction Box
CAM-BKT-IPV-PND1Pendant Mount requires Junction box
CAM-BKT-IPV-WM1Wall Mount requires Junction Box
CAM-BKT-IPV-CNRCorner Mount
CAM-BKT-IPV-PILPole/Pillar Mount


Specifications

Camera
Resolution3840×2180 (8MP)
Effective pixels8294400
Pixel size2.0µm
Image sensorSC5236
Imager type and size1/2.7″ CMOS
Optical zoomn/a
Digital zoom20x on web browser & IPV NVR
Signal systemNTSC/PAL
Aspect ratio16:9
Minimum illuminationcolor: 0.11Lux
B/W: 0.0032lux
IR: 0 lux
Day night typeIR cut filter auto switch
Electronic shutter rangeauto/manual (1/1 – 1/10,000s)
High Dynamic Range (HDR)yes (WDR)
Electronic Image Stabilization (EIS)n/a
Encoding
Video compressionH.265 / H.264 / MJPEG
Frame rate
(maximum)
8MP(3840×2180);6MP(3072×2048), 5MP(2592×1944) ; @ 1-20fps settable
Bit rate controllow bit rate (LBR), variable bit rate (VBR), constant bit rate (CBR) in H.265/H.264
Video streamingup to 3 individually configured streams in H.265 / H.264 / MJPEG
Network
ProtocolsUDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS
SecurityIP Network Filter, Allow or Disallow from IPv4,IPv6 or MAC addresses, 802.1x
Communication interfaceRJ45 10M/100M  Ethernet interface
System compatibilityOnvif S / G compliant
Lens
Lens typeMotorized Zoom
Irisauto-Iris
Focal length2.8-12mm
F-numberF1.4
Horizontal field of view102.7°- 32.2°
Vertical field of view57.7°- 18.1°
FocusAuto
Remote focus and zoomYes
IR illuminator
IR distance60m (196feet) night vision with Dual SMD IR LED array
Audio
Audio Input/Outputline in / n/a
Streamingn/a
EncodingG711A/U
Alarm
Inputn/a
Outputn/a
Additional Features
Image settingsROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser.
Corridor mode90°, 180°
Built-in analyticsobject removal detection, abnormal video signal detection, line crossing detection and intrusion detection
Event triggersanalytics, network failure detection, scense change detection
Event actionsetrigger snapshot, email,ftp upload
File uploadFTP, network share and email
NotificationsHTTP, FTP, email
StorageMicro SD Storage up to 128GB, Local HDD storage via browser
Environmental
Ingress protectionIP67
Vandal resistance proofIK10
Operating temperature-22°F to 131°F [-30°C to 55°C]
Storage temperature-4°F to 158°F [-20°C to 70°C]
Operating humidity90%RH non-condensing
Storage humidity90%RH non-condensing
Electrical
Input voltageDC12V ± 10%, PoE (802.3af)
Current draw800mA at DC12V
Power< 9.5W
Physical Characteristics
Dimensions217.7mm(H) x 80.5mm x 80.5mm [8.57’ x 3.17’ x 3.17’]
Weight660g [1.45lb]
ConnectorsEthernet interface: RJ45 DC power terminal block
Finishmetal and acrylic
General
Safety/EMC standardCE, FCC
LanguagesEnglish
