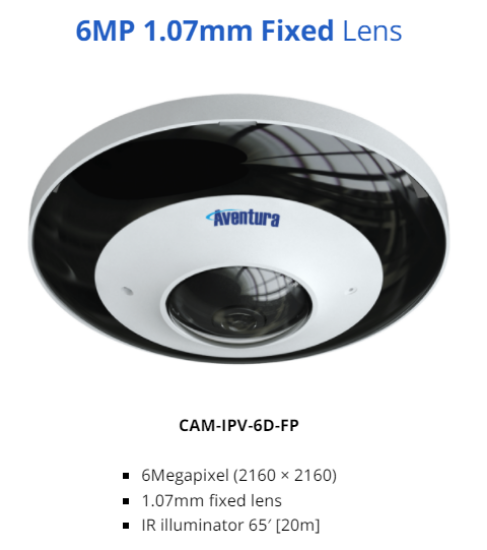

CAM-IPV-6D-FP

6MP resolution 1.07mm Lens ICR auto switch, true day / night, ROI coding 3D DNR, digital WDR, HLC, BLC, defog 20~30m IR night view distance DC12V/PoE power supply IP67 ingress protection Support three streams Intelligent analytics
Manufacturer: Aventura

Features

  • 6MP resolution 1.07mm Lens
  • ICR auto switch, true day / night, ROI coding
  • 3D DNR, digital WDR, HLC, BLC, defog
  • 20~30m IR night view distance
  • DC12V/PoE power supply
  • IP67 ingress protection
  • Support three streams
  • Intelligent analytics

Part Numbers


CAM-IPV-6D-FP6MP Fisheye with 1.07mm 180°/360° Lens
CAM-BKT-IPV-J4Junction Box
CAM-BKT-IPV-PND4Pendant Mount requires Junction box
CAM-BKT-IPV-WM4Wall Mount requires Junction Box
CAM-BKT-IPV-CNRCorner Mount
CAM-BKT-IPV-PILPole/Pillar Mount


Specifications

Camera
Resolution2160 × 2160 (6MP)
Effective pixels4665600
Pixel size1.5µm
Image sensorSC5236
Imager type and size1/2.9″ CMOS
Optical zoomn/a
Digital zoom20x on web browser & IPV NVR
Signal systemNTSC/PAL
Aspect ratio1:1
Minimum illuminationcolor: 0.068Lux
IR: 0 lux
Day night typeIR cut filter auto switch
Electronic shutter rangeauto/manual (1/1 – 1/10,000s)
High Dynamic Range (HDR)yes
Electronic Image Stabilization (EIS)n/a
Encoding
Video compressionH.265 / H.264 / MJPEG
Frame rate
(maximum)
A) Fisheye+panorama+3 PTZ 50Hz: 25fps@(2160 × 2160/1920×1920/1440×1440),25fps@(1920 × 1080), 25fps@(960× 540)*3 60Hz: 30fps@(2160 × 2160/1920×1920/1440×1440),30fps@(1920 × 1080), 30fps@(960× 540)*3:
B) Fisheye+ 4 PTZ 50Hz: 25fps@(2160 × 2160/1920×1920/1440×1440),25fps@(960× 540)*4 60Hz: 30fps@(2160 × 2160/1920×1920/1440×1440),30fps@(960× 540)*4
Bit rate controllow bit rate (LBR), variable bit rate (VBR), constant bit rate (CBR) in H.265/H.264
Video streamingup to 3 individually configured streams in H.265 / H.264 / MJPEG
Network
ProtocolsUDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS
SecurityIP Network Filter, Allow or Disallow from IPv4,IPv6 or MAC addresses, 802.1x
Communication interfaceRJ45 10M/100M  Ethernet interface
System compatibilityOnvif S / G compliant
Lens
Lens typeFixed
Irisauto-Iris
Focal length1.07mm
F-numberF2.5
Horizontal field of view360°
Vertical field of view180°
FocusFixed
Remote focus and zoomn/a
IR illuminator
IR distance30m (98.4feet) night vision with SMD IR LED array
Audio
Audio Input/Output1 in / 1 out
Streamingn/a
EncodingG711A / U
Alarm
Inputn/a
Output1 Out
Additional Features
Image settingsROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser.
Corridor mode90°, 180°
Built-in analyticsobject removal detection, abnormal video signal detection, line crossing detection and intrusion detection
Event triggersanalytics, network failure detection, scense change detection
Event actionsetrigger snapshot, email,ftp upload
File uploadFTP, network share and email
NotificationsHTTP, FTP, email
StorageLocal storage via browser
Environmental
Ingress protectionIP67
Vandal resistance proofIK10
Operating temperature-22°F to 131°F [-30°C to 55°C]
Storage temperature-4°F to 158°F [-20°C to 70°C]
Operating humidity90%RH non-condensing
Storage humidity90%RH non-condensing
Electrical
Input voltageDC12V ± 10%, PoE (802.3af)
Current draw1A at DC12V
Power< 12W
Physical Characteristics
Dimensions130mm(ø) x 41mm [5.11’ x 1.57’]
Weight450g [0.99lb]
ConnectorsEthernet interface: RJ45 DC power terminal block 2x RCA Audio, Input/Output BNC Componant Video Output
Finishmetal and acrylic
General
Safety/EMC standardCE, FCC
LanguagesEnglish
